Products Description

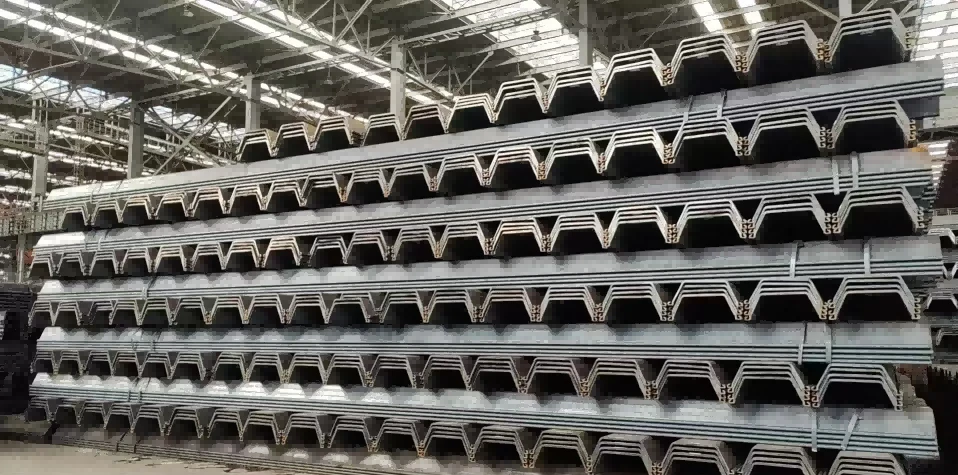

Steel sheet piles are interlocking structural steel profiles widely used for earth retention, water barrier, and foundation support in civil and marine engineering. We provide two mainstream types: U-Type Steel Sheet Piles and Z-Type Steel Sheet Piles, including hot-rolled and cold-formed production processes. Both types feature precise interlocking joints, high structural rigidity, excellent water tightness, and reusable performance, meeting international construction standards for temporary and permanent engineering projects.
Our sheet piles are fully compliant with EN, GB, JIS, and ASTM standards, with complete custom specifications and stable export quality, serving global construction markets including Europe, Southeast Asia, the Middle East, and Africa.
1.Core Difference Between U-Type & Z-Type Sheet Piles：
|
Item |
U-Type Steel Sheet Pile |
Z-Type Steel Sheet Pile |
|---|---|---|
|
Profile Feature |
U-shaped cross-section, symmetrical structure, simple interlock design |
Z-shaped cross-section, offset web design, optimized section distribution |
|
Structural Performance |
Stable rigidity, balanced stress, suitable for conventional load conditions |
Higher section modulus, stronger bending resistance, better bearing capacity |
|
Water Tightness |
Good, ideal for general water-retaining projects |
Excellent, tighter interlock joints for deep water and high-seepage environments |
|
Application Scenarios |
Most versatile, suitable for shallow foundation, road support, small cofferdams |
Ideal for deep foundation, marine engineering, large-scale retaining walls |
|
Cost & Reusability |
Cost-effective, high reuse rate for temporary projects |
High performance, long service life for heavy-duty permanent projects |
2.Common Export Material Grades & Standards：
We adopt globally recognized steel grades to meet different national engineering standards and export requirements, with stable mechanical properties and strong corrosion resistance.
|
Standard |
Main Steel Grades |
Application Features |
|---|---|---|
|
EN European Standard |
S235JR, S275JR, S355JR, S355GP, S390GP, S430GP |
Main export grade for Europe, high structural stability, suitable for marine and heavy engineering |
|
GB Chinese Standard
|
Q235B, Q345B, Q355B, Q390P, Q420P |
Cost-effective, stable quality, widely used in global general construction projects |
|
JIS Japanese Standard |
SY295, SY390, SS400 |
Popular in Southeast Asia, compliant with Japanese construction specifications |
|
ASTM American Standard |
A36, A572 Gr.50, A690
|
For North American & coastal projects, excellent seawater corrosion resistance |
Detailed Technical Parameters & Size Specifications
1 U-Type Steel Sheet Pile Specifications
Hot-rolled & cold-formed U-type sheet piles, customizable length and surface treatment
|
Model |
Width (mm) |
Thickness (mm) |
Length (m) |
Section Modulus (cm³/m) |
Weight (kg/m) |
|---|---|---|---|---|---|
|
U400x125x8 |
400 |
8 |
6-18 (customizable) |
820 |
48.0 |
|
U400x150x10 |
400 |
10 |
6-18 (customizable) |
1080 |
60.0 |
|
U500x200x10 |
500 |
10 |
6-18 (customizable) |
1350 |
72.5 |
|
U600x210x12 |
600 |
12 |
6-18 (customizable) |
1850 |
89.0 |
2 Z-Type Steel Sheet Pile Specifications
High-strength Z-type sheet piles for heavy-load and deep foundation engineering
|
Model |
Width (mm) |
Thickness (mm) |
Length (m) |
Section Modulus (cm³/m) |
Weight (kg/m) |
|---|---|---|---|---|---|
|
Z400x180x10 |
400 |
10 |
6-24 (customizable) |
1520 |
68.5 |
|
Z500x200x12 |
500 |
12 |
6-24 (customizable) |
2180 |
85.2 |
|
Z600x220x14 |
600 |
14 |
6-24 (customizable) |
2950 |
105.8 |
|
Z700x240x16 |
700 |
16 |
6-24 (customizable) |
3800 |
128.3 |
3 Universal Mechanical Parameters
Yield Strength: ≥235MPa ~ ≥420MPa (depending on steel grade)
Tensile Strength: 360–600MPa
Elongation: ≥22%
Surface Treatment: Mill finish, black painted, hot-dip galvanized, anti-rust coating
Production Process: Hot rolled / Cold formed
HS Code: 730110
Applications
U-type and Z-type steel sheet piles are widely applicable to temporary and permanent engineering projects across multiple fields, covering land and marine construction:
1. Civil Construction Engineering
Deep foundation pit support, building foundation reinforcement, urban underground pipe gallery protection, slope stabilization, road and bridge foundation reinforcement.
2. Marine & Port Engineering
Port wharf retaining walls, breakwater construction, seawall reinforcement, coastal erosion prevention, offshore platform foundation support.
3. Water Conservancy & Flood Control
River & lake cofferdam construction, water channel renovation, flood barrier wall, reservoir slope protection, water seepage prevention projects.
4. Municipal & Traffic Engineering
Subway foundation support, tunnel excavation protection, highway slope protection, municipal ditch reinforcement, temporary construction enclosure.
5. Emergency & Temporary Projects
Flood emergency rescue, temporary construction retaining walls, quick earth-retaining support for engineering renovation, reusable temporary cofferdams.
FAQ
Q1: What is the difference between hot-rolled and cold-formed sheet piles?
Hot-rolled sheet piles have higher overall rigidity, better structural stability and stronger bearing capacity, suitable for heavy-duty and permanent projects. Cold-formed sheet piles feature lower cost, flexible size customization and light weight, ideal for temporary and light-load engineering projects.
Q2: Which type should I choose, U-type or Z-type?
U-type sheet piles are preferred for conventional, shallow, and temporary projects with cost priority. Z-type sheet piles are more suitable for deep foundation, high-load, marine and permanent projects due to higher section modulus and bending resistance.
Q3: Can you customize non-standard sizes and lengths?
Yes. We support full customization of length (6-24m), thickness, width and surface treatment. We can produce non-standard profiles according to customer drawings and project requirements.
Q4: What steel grades are most recommended for export?
For European markets: S355GP/S355JR; For Southeast Asian markets: SY295/SS400/Q345B; For American markets: A690/A572 Gr.50; For general global projects: Q235B/Q355B with cost performance advantage.
Q5: What is your delivery time and packaging method?
Stock products can be delivered within 7-10 days; customized products take 15-25 days. Standard export packaging: bundled with steel strips, anti-rust painting, waterproof wrapping, suitable for sea transportation and long-distance logistics.
Q6: Are your sheet piles reusable?
Yes. Our high-quality hot-rolled sheet piles have intact interlock joints and stable structural performance, which can be extracted and reused for multiple times, greatly reducing project construction costs.
Q7: What quality certifications do you have?
Our products comply with EN 10248, GB/T 29737, JIS A 5528 and ASTM standards, with ISO 9001 quality certification, third-party inspection reports (SGS/BV) available upon request.
