Products Description

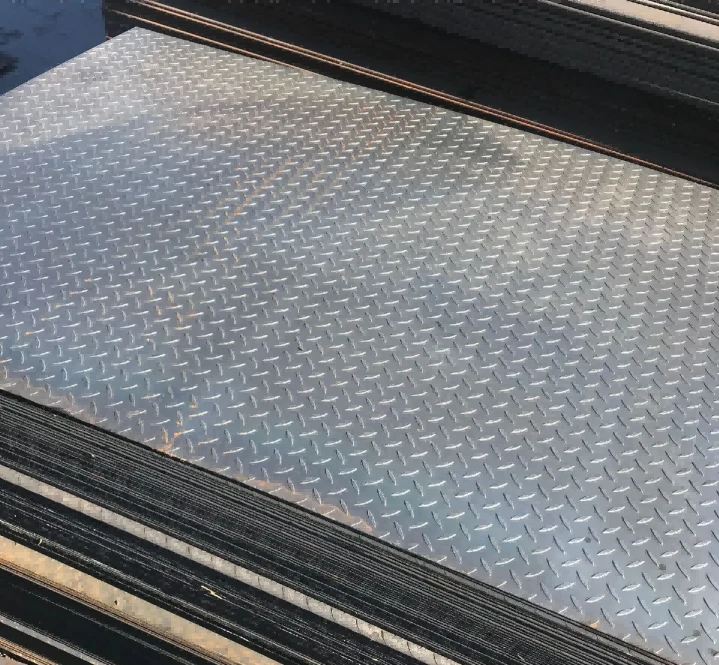

Checkered plate (also named chequered plate, diamond plate) is a hot-rolled steel sheet with regular raised anti-slip patterns on the surface. Manufactured in strict accordance with international export standards, this product features excellent anti-slip performance, high structural strength, wear resistance and corrosion resistance. It is widely used in industrial anti-slip flooring, transportation equipment, construction facilities and mechanical protection fields. We provide standardized export specifications and customized processing services to meet global customer demands.
|
Item |
Standard Export Range |
Remarks |
|---|---|---|
|
Plate Thickness |
2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm |
3.0-6.0mm core stock thickness for bulk export |
|
Standard Width |
1000mm, 1220mm, 1250mm, 1500mm, 1800mm, 2000mm |
1220mm/1500mm most popular for container loading |
|
Standard Length |
6000mm, 8000mm, 9000mm, 12000mm |
6000mm/8000mm standard export length |
|
Regular Sheet Size |
1220*2440mm (4*8ft), 1500*6000mm |
Universal international packaging size |
|
Technical Index |
Parameter Value |
Test Standard |
|---|---|---|
|
Yield Strength |
≥235MPa (Q235B); ≥345MPa (Q345B) |
EN 10025 / GB/T 700 |
|
Tensile Strength |
370-500MPa |
ISO 6892 |
|
Elongation |
≥26% |
ISO 6892 |
|
Pattern Lug Height |
0.5-1.2mm (customizable) |
GB/T 3277 |
|
Surface Roughness |
Anti-slip grade R11-R13 |
DIN 51130 |
|
Bending Performance |
180° cold bending without crack |
GB/T 232 |
|
Tolerance |
Thickness tolerance: ±0.1mm; Size tolerance: ±2mm |
International export tolerance standard |
All materials comply with international standard certifications, supporting third-party inspection:
- Carbon Steel: Q235B, Q345B, SS400, S355JR, ASTM A36 (Most mainstream export grades, cost-effective and reliable)
- Galvanized Steel: Hot-dip galvanized checkered plate, enhanced anti-corrosion performance for humid and outdoor environments
- Stainless Steel: 201, 304, 316L (For high-corrosion, food and marine industrial scenarios)
- Executive Standards: GB/T 3277, ASTM A1011, EN 10025, JIS G3101
Application Fields
Checkered plates are widely used in global industrial, construction and transportation industries due to reliable anti-slip and protective performance:
- Industrial Facilities: Factory anti-slip flooring, operating platforms, stair treads, walkways, workshop anti-slip steps
- Transportation Industry: Truck & trailer flooring, ship deck anti-slip plates, subway and elevator floor panels, container bottom plates
- Construction Engineering: Building staircases, outdoor pedestrian walkways, bridge anti-slip surfaces, municipal engineering safety platforms
- Mechanical Equipment: Mechanical protective cover, equipment base anti-slip plate, engineering machinery pedal, generator room anti-slip flooring
- Special Scenarios: Marine engineering, chemical plants, food factories, pharmaceutical factories (stainless steel checkered plate)
Packaging: Standard export waterproof paper + plastic film + steel strip fixed packaging, anti-rust, anti-collision and anti-deformation
Loading: 20GP/40GP container loading, support bulk cargo shipping
Documents: Provide commercial invoice, packing list, bill of lading, material test report (MTC), CE/SGS certification (customizable)
Delivery Time: Stock specifications 3-7 days delivery; customized sizes 7-15 days delivery
FAQ
Q1: What certifications can you provide for customs clearance?
A1: We can provide official Material Test Certificate (MTC), SGS inspection report, CE certification, and factory qualification certificates. All documents support global customs clearance and third-party inspection.
Q2: Can you customize non-standard sizes and patterns?
A2: Yes. We support customized thickness, width, length, pattern height and surface treatment (galvanized, painted) according to customer drawings and engineering requirements.
Q3: What is the minimum order quantity (MOQ) for export?
A3: Stock standard sizes support small batch trial orders; customized products MOQ is 1 ton. We support mixed loading of different specifications to help customers control procurement costs.
Q4: How to guarantee the product quality?
A4: Each batch of products will undergo strict dimensional tolerance detection, mechanical performance test and surface quality inspection before shipment. We support on-site factory inspection and third-party authoritative testing.
Q5: What is the service life of the checkered plate?
A5: Ordinary carbon steel checkered plate serves 3-5 years in conventional indoor environments; hot-dip galvanized checkered plate can reach 8-12 years; stainless steel type has a service life of more than 15 years in corrosive environments.
Q6: Do you provide deep processing services?
A6: Yes. We provide cutting, bending, welding, punching, grinding, galvanizing and other deep processing services, delivering finished products directly for customer installation and use.
Q7: What payment terms do you support?
A7: We support T/T, L/C at sight, Western Union and other international payment terms, flexible and secure for global trade cooperation.
