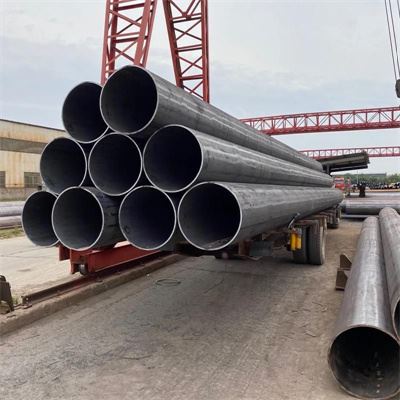

API 5L X60 High Pressure LSAW Steel Pipe For Long Distance Oil Transportation Pipeline

API 5L X60 High Pressure LSAW Steel Pipe is a professional longitudinal submerged arc welded line pipe strictly manufactured in accordance with API 5L international petroleum industry standards. Featuring high yield strength, excellent pressure resistance, stable mechanical performance and outstanding welding quality, this LSAW steel pipe is specially customized for long-distance onshore and offshore oil and gas transportation projects. All products pass full NDE non-destructive testing, with reliable structural stability and long service life, perfectly adapting to high-pressure, long-distance and harsh environment pipeline transmission working conditions, and is the preferred pipeline material for global petroleum and natural gas transmission engineering.

1. Executive Standard: API 5L (Latest Version).

2. Steel Grade: X60.

3. Quality Level: PSL1 / PSL2 (Customizable).

4. Production Process: Longitudinal Submerged Arc Welding (LSAW).

5. Inspection Standard: Full NDE Non-destructive Testing.

1. Outer Diameter Range: 406mm - 1422mm (16inch - 56inch).

2. Wall Thickness Range: 6mm - 40mm.

3. Pipe Length: 5m - 36m (fixed length / random length / customized).

4. Pipe End: Plain End / Beveled End / Flanged End.

5. Tolerance: Strictly comply with API 5L standard dimensional tolerance.

1. Minimum Yield Strength: 415MPa (60200psi).

2. Minimum Tensile Strength: 520MPa (75400psi).

3. Maximum Yield Strength (PSL2): 565MPa (81900psi).

4. Excellent low-temperature toughness and impact resistance.

5. Stable ductility, suitable for long-distance pipeline laying and bending construction.

Optional professional anti-corrosion coatings for long-term buried and offshore use:

1. 3PE / 2PE anti-corrosion coating.

2. FBE fusion bonded epoxy coating.

3. 3PP anti-corrosion treatment.

4. Internal epoxy coating for fluid transmission anti-rustEffectively resist corrosion, oxidation and soil erosion, extend pipeline service life.

1. High Pressure Resistance: Adapt to 3-8MPa high-pressure oil and gas transmission working conditions, meet long-distance pipeline pressure bearing requirements.

2. Premium Welding Quality: LSAW one-time forming, uniform weld seam, no crack, high welding stability, 100% non-destructive testing qualified.

3. High Structural Stability: X60 high-strength steel grade, strong compression and impact resistance, not easy to deform during long-distance laying.

4. Strong Environmental Adaptability: Suitable for onshore, offshore, low-temperature and complex geological environment projects.

5. Long Service Life: Professional anti-corrosion treatment, wear-resistant and anti-aging, reduce later maintenance cost.

6. Customized Service: Support size, coating, end face processing customization to meet diverse engineering needs.

1. Long-distance onshore crude oil and natural gas transmission main pipelines.

2. Offshore oil and gas platform export transmission pipelines.

3. High-pressure hydrogen transmission pipelines in refineries.

4. CCS carbon dioxide injection and storage pipelines.

5. Mine slurry long-distance transmission pipelines.

6. Urban high-pressure gas and industrial fluid transmission supporting pipelines.

1. Strictly comply with API 5L international petroleum industry standard.

2. Full-body ultrasonic testing, X-ray weld inspection, hydraulic pressure test.

3. Chemical composition and mechanical property sampling test report provided.

4. ISO quality system certified, third-party inspection acceptable (SGS, BV, TUV).

5. PSL1/PSL2 full standard compliance, support project bidding inspection.

1. MOQ: Small batch trial order & large engineering bulk order acceptable.

2. Payment Term: T/T, L/C at sight, flexible terms.

3. Delivery Time: 7-15 working days for conventional specifications.

4. Packaging: Standard export seaworthy packaging, anti-rust and moisture-proof.

5. After-sales: Professional technical support, installation guidance, quality guarantee.
