ASTM A53 Type E welded steel pipe is a standardized carbon steel pipe manufactured by Electric Resistance Welding (ERW) process.
It is widely used in mechanical, structural, and low-to-medium pressure pipeline applications due to its consistent quality, cost-effectiveness, and versatility.
Products Description
|
Product |
ASTM A53 Type E Welded Steel Pipe |
| Process | Electrical Resistance Welding |
| Material Grade | Gr A , Gr B |
| Size Range | OD 1/2"–26"(21.3–660mm), Thickness 0.055"–1.602"(1.65–26.97mm) |
| Pipe Length | 5.8m, 6m,12m,as requirement |
| Pipe Ends | Plain, Bevel, Threading and coupling, Grooved |
| Surface Treatment | bare, black paint, anti-rust oil,galvanized |
| Application | oil , gas, water transportations, industires, Structure. |
Chemical Composition
The chemical composition for ASTM A53 Type E pipe is standardized to ensure weldability and performance.
The maximum percentages for key elements are as follows :
| Element | Grade A, max (%) | Grade B, max (%) |
|---|---|---|
| Carbon (C) | 0.25 | 0.30 |
| Manganese (Mn) | 0.95 | 1.20 |
| Phosphorus (P) | 0.05 | 0.05 |
| Sulfur (S) | 0.045 | 0.045 |
| Copper (Cu)* | 0.40 | 0.40 |
| Nickel (Ni)* | 0.40 | 0.40 |
| Chromium (Cr)* | 0.40 | 0.40 |
| Molybdenum (Mo)* | 0.15 | 0.15 |
| Vanadium (V)* | 0.08 | 0.08 |
*Note: The total composition for these five alloying elements (Cu, Ni, Cr, Mo, V) shall not exceed 1.00%.
Mechanical Properties
The primary distinction between Grade A and Grade B lies in their mechanical strength, making Grade B the choice for higher-stress applications.
| Property | Grade A, minimum | Grade B, minimum |
|---|---|---|
| Tensile Strength | 48,000 psi (330 MPa) | 60,000 psi (415 MPa) |
| Yield Strength | 30,000 psi (205 MPa) | 69,000 psi (240 MPa) |
production lines
Tianjin shenzhoutong is one of the biggest ERW Steel pipe manufacturers in China
We have six proudction lines for HFW , ERW steel pipes.
Certifications
Quality control
* Hydrostatic Pressure Testing
* Non-Destructive Testing (Eddy Current, Ultrasonic)
* Chemical composition test

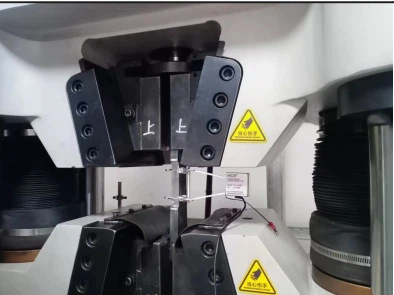

* Mechanical Property Testing
* Dimension & Visual Inspection
* Full Traceability (Mill Test Certificates 3.1 provided)
Welcome to inquire
Kevin
Tianjin shenzhoutong steel pipe co.,ltd
kevin@tjshenzhoutong.com
Mob/whatsapp/wechat +86 15267768016
