Products Description
3PE Coated ERW Steel Pipe (also called 3LPE ERW pipe) is high-frequency electric resistance welded carbon steel pipe with three-layer polyethylene external anti-corrosion coating system: fusion bonded epoxy (FBE) primer, copolymer adhesive layer, and high-density polyethylene outer layer. This anti-corrosion structure greatly resists soil corrosion, moisture, acid, alkali and microorganism erosion. Our 3PE ERW pipe covers DN15 ~ DN1200, widely used for buried oil, natural gas transmission pipeline projects. We are professional manufacturer with full inspection, stable delivery and custom service for global oil & gas contractors, pipeline engineering companies and distributors.
Specifications
|
Item |
Details |
|
Nominal Diameter |
DN15 – DN1200 |
|
Outside Diameter |
21.3mm ~ 1220mm |
|
Wall Thickness |
2.5mm ~ 20mm |
|
Standard Length |
6m, 12m; Custom cut length available |
|
Pipe End |
Plain end / Beveled end (30° bevel for welding) |
|
Coating Type |
3PE (3LPE): FBE + Adhesive + HDPE |
|
Coating Grade |
Ordinary grade / Reinforced grade / Extra reinforced grade |
|
Coating Thickness |
FBE ≥80μm; Adhesive 170–250μm; PE outer layer 1.8–3.7mm |
|
Color |
Black polyethylene coating (custom color acceptable) |
Material & Executive Standards
Pipe Substrate Standards API 5L (PSL1 / PSL2), ASTM A53, ASTM A252, GB/T 3091 Steel Grades: Grade B, X42, X46, X52, X56, X60, X65, X70, Q235B, Q355B, L245, L290, L360, L415
3PE Coating Standards ISO 21809-1, DIN 30670, GB/T 23257, SY/T 0413
Chemical Composition
|
Grade |
C |
Mn |
P |
S |
Si |
|
API 5L Gr.B |
0.26 |
1.20 |
0.030 |
0.030 |
0.40 |
|
API 5L X52 |
0.26 |
1.40 |
0.025 |
0.015 |
0.45 |
Mechanical Properties
|
Grade |
Min Yield Strength |
Min Tensile Strength |
Min Elongation |
|
API 5L Gr.B |
241 MPa |
414 MPa |
23% |
|
API 5L X52 |
359 MPa |
455 MPa |
20% |
Notes: For sour service, low S&P and hardness control can be customized upon request.
Production Process
Raw material inspection: Check hot rolled steel strip chemical & mechanical data, surface defect inspection
ERW forming & high frequency welding, online weld seam annealing
Weld seam ultrasonic online testing, trimming & sizing
Pipe cutting, straightness checking, end facing & beveling
Surface blasting pretreatment to Sa 2.5 grade, anchor profile 50–75μm, remove oil, rust and dust
Induction heating of steel pipe to target temperature
Electrostatic spraying FBE epoxy primer
Extrusion coating copolymer adhesive layer
Extrusion coating HDPE outer layer
Water cooling & curing
Coating inspection: thickness, holiday spark test, peel strength, visual check
Marking, packing, finished product final inspection, loading
Applications
Buried crude oil, fuel oil transmission pipelines
Natural gas gathering & trunk transmission pipelines
Oilfield gathering pipeline, well site connecting pipeline
River crossing, directional drilling, road crossing pipeline
Petrochemical medium transportation, underground energy pipeline network
Municipal gas distribution network, corrosive soil area pipeline project
Inspection & Test Items
Raw strip chemical analysis, mechanical tensile & bend test
ERW weld seam: Online UT ultrasonic test, offline UT / RT radiographic test
Hydrostatic pressure test for each pipe
Coating holiday spark test (pinhole detection)
Coating dry film thickness test
Peel strength test, cathodic disbondment test
Impact resistance, indentation resistance, low-temperature bending test
PMI positive material identification
Visual & dimension inspection (OD, WT, length, straightness, bevel angle)
Third-party inspection: SGS, BV, TUV acceptable

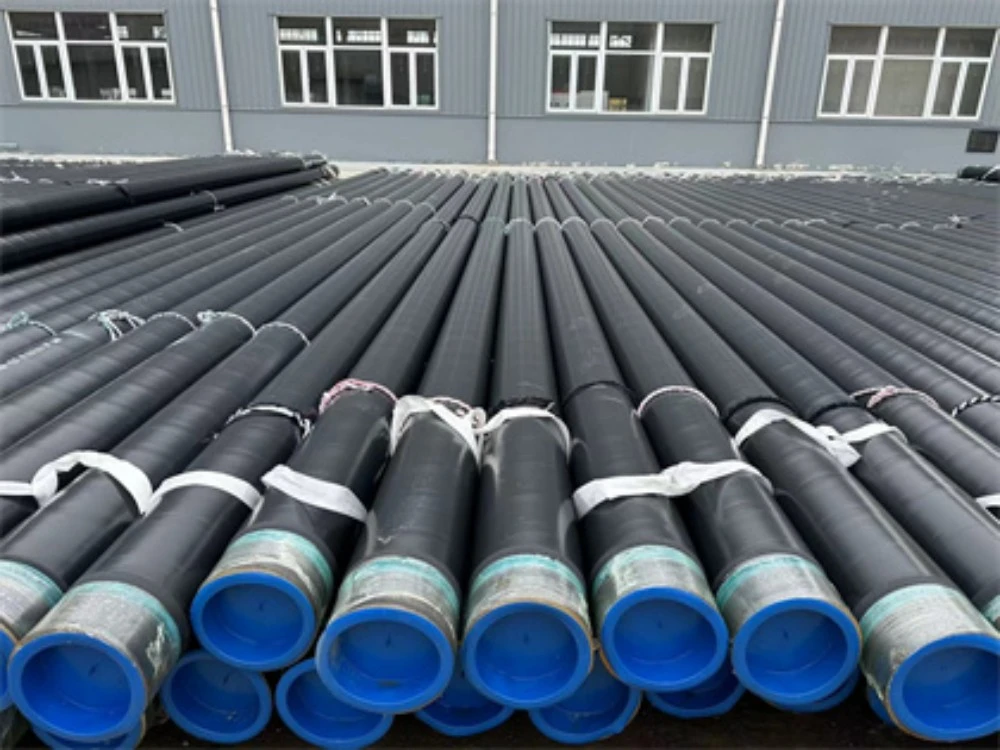

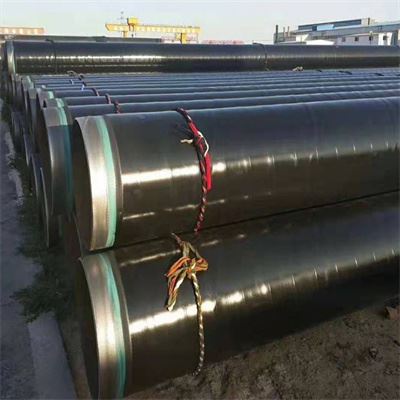

Product Show
