Product Basic Information
| Item | Details |
| Product Name | High Frequency ERW Welded Steel Pipe SCH40 Water Gas Pipeline |
| Product Category | ERW Steel Pipe / Water and Gas Pipeline / SCH40 Steel Pipe |
| Standard | ASTM A53, ASTM A106, API 5L, BS 1387, EN 10255 |
| Welding Type | High Frequency (HF) ERW (Electric Resistance Welded) |
| SCH Standard | SCH40 (Standard Schedule 40) |
| Main Application | Water Supply System, Gas Transmission Pipeline, Municipal Engineering, Industrial Fluid Conveyance, Oilfield Water Pipeline |
| Port of Shipment | Tianjin Port, Shanghai Port, Qingdao Port |
| Payment Terms | T/T, L/C, Western Union, Alibaba Trade Assurance |
| Supply Ability | 5000 Tons per Month |
| Delivery Time | 7-15 working days for stock, 15-30 working days for customized order |
| Packing | Standard seaworthy packing: Steel frame, Bundle with steel strip, Plastic cap protection |
| Warranty | 12 Months after shipment |
| Certification | ISO9001, CE, BV, SGS, API |
Product Specification
| Specification | Parameter |
| Outer Diameter (OD) | 21.3mm - 609.6mm (1/2" - 24") |
| Wall Thickness (WT) | SCH40 Standard Thickness (matches OD size) |
| Length | 6 meters, 12 meters, Customized length (5.8m, 11.8m, etc.) |
| Material Grade | ASTM A53 Gr.B, Q235B, Q355B, ST37, ST52 |
| Surface Treatment | Black painted, Galvanized, Anti-rust oil, Varnish coating |
| Pipe End | Plain end, Beveled end, Threaded end (NPT/BSP), Coupled end |
| Tolerance | OD: ±0.5mm, WT: ±0.2mm, Length: ±5mm |
| Yield Strength | ≥245MPa |
| Tensile Strength | ≥410MPa |
| Elongation | ≥22% |
Product Features & Advantages
| Feature | Advantage |
| High Frequency ERW Welding | Stable welding seam, high precision, no leakage, good air tightness for water and gas |
| SCH40 Standard Dimension | Uniform wall thickness, standard connection, compatible with global pipe fittings |
| High Structural Strength | Good pressure resistance, suitable for medium-pressure water and gas transmission |
| Corrosion Resistance | Multiple surface treatments available, long service life in outdoor and underground environment |
| Smooth Inner Wall | Low fluid resistance, high conveying efficiency, no scaling for water/gas medium |
| Easy Installation | Standard size, light weight, convenient for cutting, welding and on-site construction |
| Cost-effective | Lower production cost than seamless pipe, reliable quality, suitable for large-scale engineering |
| Wide Compatibility | Suitable for drinking water, natural gas, coal gas, industrial water and other media |
Product Performance & Test
| Test Item | Standard Requirement | Test Result |
| Hydrostatic Test | 100% hydrostatic pressure test, no leakage | Qualified |
| Flattening Test | No crack, no welding seam separation | Qualified |
| Flaring Test | 180° flaring, no crack | Qualified |
| Bending Test | 90° bending, no damage | Qualified |
| Tensile Test | Meet ASTM A53 Gr.B standard | Qualified |
| Hardness Test | HB 110-150 | Qualified |
| Dimensional Inspection | Meet SCH40 tolerance standard | Qualified |
| Surface Inspection | No crack, no scar, no inclusion, no pitting | Qualified |
Application Scope
| Application Field | Specific Usage |
| Municipal Water Supply | Urban drinking water pipeline, residential water supply network |
| Gas Transmission | Natural gas pipeline, LPG gas pipeline, city gas distribution |
| Industrial Pipeline | Industrial circulating water, cooling water, process fluid transmission |
| Construction Engineering | Building water supply and drainage, fire fighting pipeline, HVAC system |
| Oilfield & Mining | Oilfield water injection pipeline, mine drainage pipeline |
| Agricultural Irrigation | Farmland water supply pipeline, irrigation system |
| Chemical Industry | Corrosive fluid transmission (with special surface treatment) |
Packaging & Shipping
| Packing Type | Details | Loading Quantity |
| Steel Bundle Packing | Bundle with steel strip, plastic cap at both ends | 20-25 tons per 20FT container |
| Steel Frame Packing | Fixed with steel frame, anti-collision protection | 22-28 tons per 40FT container |
| Customized Packing | Wooden case, pallet packing (for small size) | According to customer requirement |
| Shipping Mark | Customer logo, product specification, batch number, gross weight | Clear and durable printing |

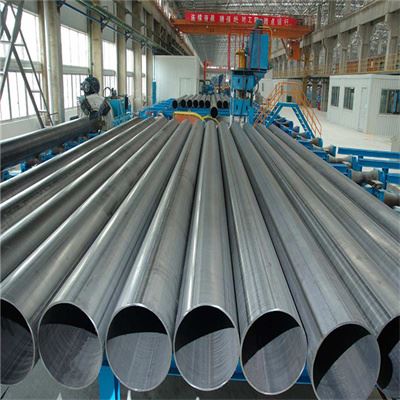

Products Show
FAQ
Q: Q1: What is the maximum temperature this SCH40 ERW pipe can handle?
A: For standard ASTM A53 Grade B SCH40 ERW pipe, the maximum continuous working temperature is up to 425°C, which is fully suitable for low-pressure steam, hot water and general industrial fluid transportation.
Q: Q2: Can you provide third-party inspection before shipment?
A: Yes, we fully support SGS, BV, LR or any other appointed third-party inspection organization to carry out dimension check, material test and visual inspection in our factory before loading.
Q: Q3: What is your standard package for export?
A: Normally pipes are bundled with steel strips, then wrapped with waterproof woven plastic cloth on the outside. Special packaging requirements can be negotiated according to client's demand.
