Products Description
ASTM A252 ERW Piling Steel Pipe is a professional electric resistance welded steel pipe, specially designed for foundation construction casing and piling engineering. Complying with ASTM A252 international standard, this steel pipe serves as permanent load-bearing piling components or outer casing for cast-in-place concrete piles. Manufactured by advanced ERW welding technology, it features uniform wall thickness, smooth inner and outer surface, excellent structural integrity and stable mechanical properties. It is widely applicable for various deep foundation projects, effectively bearing vertical building loads and lateral soil pressure, ensuring the stability and safety of infrastructure engineering. We provide full-size customized services and strict quality inspection to meet global construction project standards.
Product Standard & Grade
| Executive Standard | ASTM A252, ASTM A252M |
| Available Steel Grade 1 | Grade 1, Min Yield Strength: 205MPa (30ksi), for general foundation projects |
| Available Steel Grade 2 | Grade 2, Min Yield Strength: 240MPa (35ksi), for building and bridge foundation |
| Available Steel Grade 3 | Grade 3, Min Yield Strength: 310MPa (45ksi), for heavy load and offshore projects |
Technical Parameters
| Production Process | ERW (Electric Resistance Welded) |
| Outer Diameter Range | 219mm - 1422mm (8 inch - 56 inch), tolerance ±1% |
| Wall Thickness Range | 6.4mm - 50mm, standard tolerance ≤12.5% |
| Pipe Schedule | STD, SCH40, SCHXS, SCH80, SCHXXS |
| Standard Length | 4.88m, 6m, 12m, customized fixed length available |
| Pipe End Type | Plain End, Beveled End (30°/35°) |
| Surface Treatment Option 1 | Black varnish painting, anti-rust oil protection |
| Surface Treatment Option 2 | 3PE anti-corrosion coating, FBE epoxy coating |
| Surface Treatment Option 3 | Hot dip galvanized finish for long service life |
| Material Feature | Low carbon steel, good weldability, high impact resistance |
Product Advantages
| Advantage 1: Standard | Fully compliant with ASTM A252 international standard, acceptable for global engineering bidding |
| Advantage 2: Performance | High compression strength and bending resistance, stable for deep soil and underwater piling |
| Advantage 3: Welding Quality | Smooth welding seam, no crack, no leakage, high structural integrity |
| Advantage 4: Adaptability | Multiple grades and sizes cover light, medium and heavy load construction projects |
| Advantage 5: Corrosion Resistance | Optional multi-layer anti-corrosion treatment, suitable for harsh marine and geological environment |
| Advantage 6: Construction | Smooth pipe surface, easy piling driving and concrete pouring, save project cost |
| Advantage 7: Customization | Support custom size, surface treatment and packaging according to client drawings |
Application
| Application 1: Building Works | High-rise building, factory, residential and commercial building foundation piling casing |
| Application 2: Traffic Infrastructure | Bridge pier, viaduct, highway and railway foundation engineering |
| Application 3: Marine Engineering | Offshore platform, port, dock, wharf and breakwater foundation support |
| Application 4: Hydraulic Engineering | Dam reinforcement, water conservancy station foundation, river bank protection |
| Application 5: Municipal Engineering | Foundation pit support, landslide prevention, tower and communication base foundation |
Full Quality Inspection
| Inspection Item | Details |
| Chemical Composition Test | Verify carbon, manganese, silicon, sulfur, phosphorus and other alloying elements meet ASTM A252 standard requirements |
| Mechanical Property Test | Tensile strength, yield strength, elongation and hardness testing to ensure pipe structural integrity |
| Dimensional Tolerance Inspection | Check outer diameter, wall thickness, length, straightness and end squareness within specified tolerances |
| Welding Seam Non-Destructive Testing | Ultrasonic testing (UT), radiographic testing (RT) or eddy current testing (ECT) to detect weld defects |
Complete Certification
| Certificate Type | Details |
| Factory Test Certificate (MTC) | Mill Test Certificate issued per EN 10204 3.1, documenting chemical composition and mechanical test results |
| ASTM Standard Certification | Compliance with ASTM A252 Standard Specification for Welded and Seamless Steel Pipe Piles |
| Third-Party Inspection Support | Accept SGS, BV, TUV, ABS and other authorized third-party inspection agencies upon buyer request |
Global Service
| Service Item | Details |
| OEM & ODM Customization | Custom sizes, grades, lengths, end finishes (beveled, flat, threaded), coatings and markings per project requirements |
| Fast Production Cycle | Efficient production scheduling with lead times from 7 to 30 days depending on order quantity and specifications |
| Professional Export Packaging | Bundle packaging with steel strips, wooden pallets, waterproof wrapping and end caps to prevent damage during transit |
| Global Logistics Delivery | FOB, CIF, CFR, DDP trade terms; shipping to major ports worldwide with full documentation support |
After-Sales Support
| Support Item | Details |
| Product Selection Guidance | Professional engineering team assists in selecting correct pipe grade, wall thickness and diameter based on load and soil conditions |
| Construction Technical Guidance | On-site or remote technical support for pile driving, welding, splicing and foundation construction procedures |

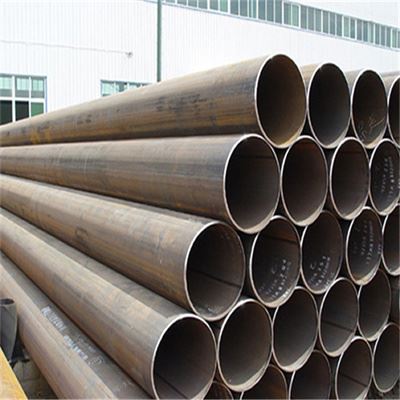

Product Show
